Max. Workable Size :3000 L x 650W x 720H mm
Required Power 72Kw

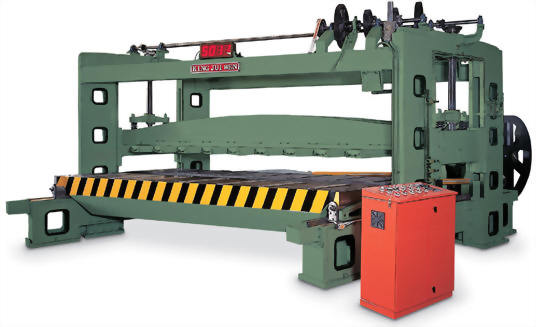

. Extra wide machine frame, massive table and accurate and smooth running to assure high cutting quality.
. Suitable for soft and hard wood.
. Available to increase frame width to suit manmade tree.

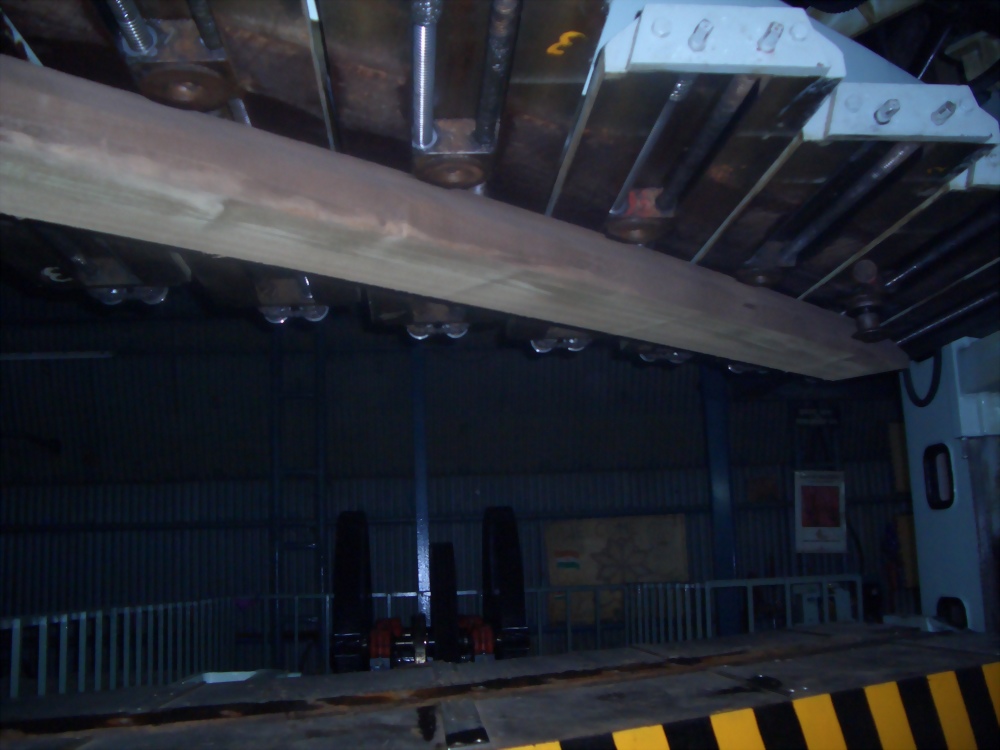

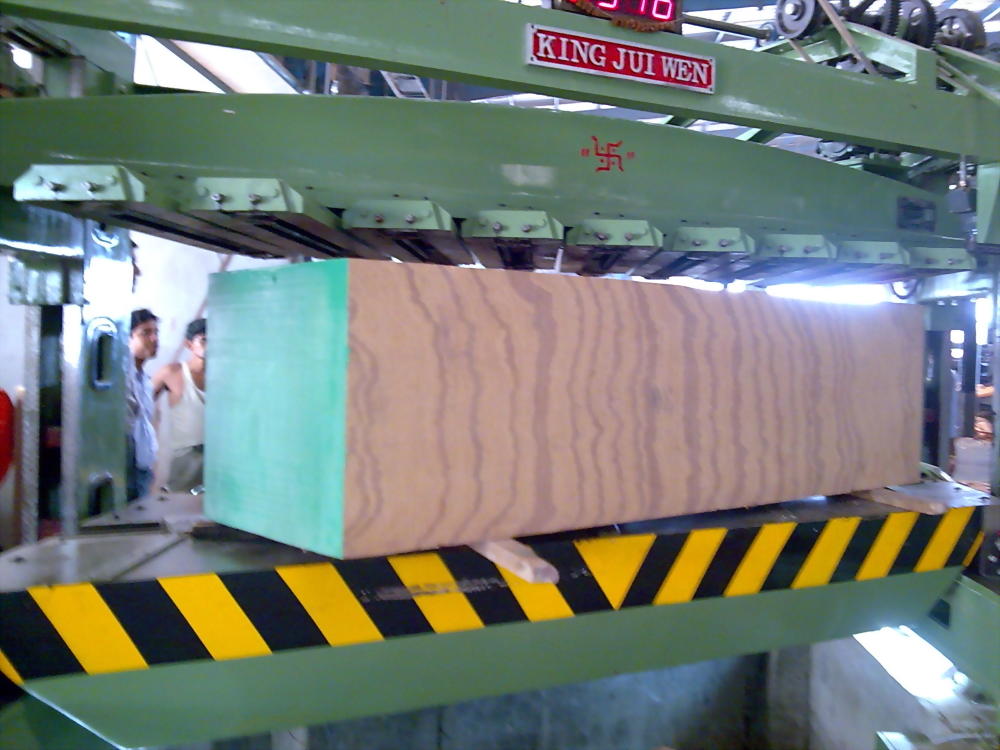

. Flitch holding device and mine sets motor flitch combined with manual tightening to ensure secure clamping and safety.
|
Specifications |
VS-10 |
|
Max. slicing cability of flitch (L x W x H) |
3000 x 650 x 720 mm |
|
Length of knife (L x W x H) |
3000 x 200 x 19 mm |
|
Pressure bar dimension (L x W x H) |
3000 x 41 x 10 mm |
|
Range of veneer thickness |
0.07 ~ 2 mm |
|
Slicing stroke |
1400 mm |
|
Slicing speed |
20~28Pcs(50Hz)Min. |
|
Flitch clamping menthod |
9 motors |
|
Custom machine specifications are available. |
|
